Descrizione

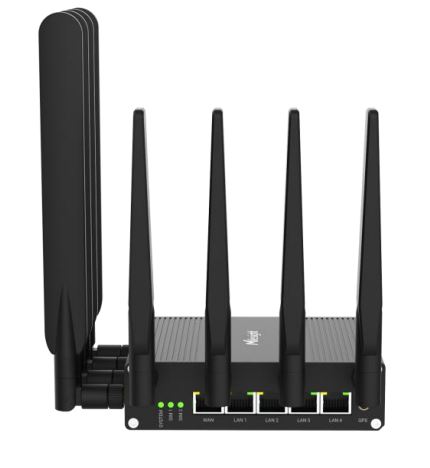

Made for high-performance, industrial standard, it has quad-core CPU and cellular module that supports global WCDMA, 4G LTE and 5G sub-6 Ghz NSA and SA network.
DOPPIA SIM a bordo con funzioni di failover
Hardware System
CPU Quad-core ARM Cortex-A55，2 GHz
Memory 1 GB LDDR4x RAM and 1 GB NAND Flash
Extendable Storage 1 × M.2 NVMe SSD Interface
Cellular Interface
Network 5G NR SA & NSA/4G LTE/WCDMA
Frequency
5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE TDD: B38/B40/B41/B42/B43
WCDMA: B1/B5/B8
Antenna 4 × 50 Ω SMA Connectors (Center PIN: SMA Female)
SIM Slot 2（Mini SIM-2FF）
Ethernet Interface
Numbers 5 × 10/100/1000 Mbps
Property 1 × WAN +4 × LAN
Mode Full or Half Duplex (Auto-Sensing)
PoE 4 × 802.3 af/at PoE PSE on LAN Ports (Optional)
Wi-Fi Interface (Optional)
Antenna 4 × 50 Ω SMA Connectors (Center PIN: RP-SMA Female)
Standards
IEEE 802.11b/g/n/ax 2 x 2 MIMO, 2.4 GHz
IEEE 802.11a/n/ac/ax 2 x 2 MIMO, 5 GHz
Max Bit Rate 2.4 GHz: 600 Mbps, 5 GHz: 1200 Mbps
Modes AP and Client1 Mode
Security WEP/WPA/WPA2 authentication, WEP/TKIP/AES encryption
GNSS
Antenna 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
Technology GPS/GLONASS/Beidou/Galileo/QZSS
Protocol NMEA 0183
Serial Interface
Numbers 1 × RS232 + 1 × RS485
Connector 3.5 mm Terminal Block
Baud Rate 300bps to 230400bps
UR75 Datasheet
DI/DO
Numbers 1 × DI (Dry Contact) + 1 × DO (Wet Contact)， Galvanic Isolation
Connector 3.5 mm Terminal Block
Maximum V/A 0.3A@30VDC (DO)
Others
USB 1 × USB 3.0 (Type-C) for Power Supply, Network Supply and DebugReset Button 1 × RESET
LED Indicators 1 × SYSTEM，1 × SIM1，1 × SIM2
Built-in Watchdog, Timer
Software
Network Protocols
IPv4/IPv6, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. VPN IPsec, OpenVPN, LT2P, PPTP
Security
Access Control, DMZ, Port Forwarding, SYN-Flood Protection, Filtering(IP& MAC & Domain)
Management Web, DeviceHub, MilesightVPN
Reliability WAN Failover, Dual SIM Backup
Serial Port
Transparent (TCP Client/Server, UDP), Modbus Master, Modbus Gateway(Modbus RTU to Modbus TCP)
Power Supply and Consumption
Power Connector 2-pin 3.5 mm Terminal Block
Power Input
1. 9-48 VDC, with Surge-Protection and Reverse Polarity Protection2. 5V, 3A by Type-C Port
Power Consumption
(In Non-PoE mode)
Without Wi-Fi: Typical 2.8 W, Max 5.5 W
With Wi-Fi: Typical 7 W, Max 13.7 W
